What is Embedded Passive Technology?
Embedded passives technology integrates passive components such as resistors and capacitors into the PCB’s innerlayers. Embedding passive components can lower cost, increase reliability and reduce the footprint of the PCB.

Embedded Capacitance Materials

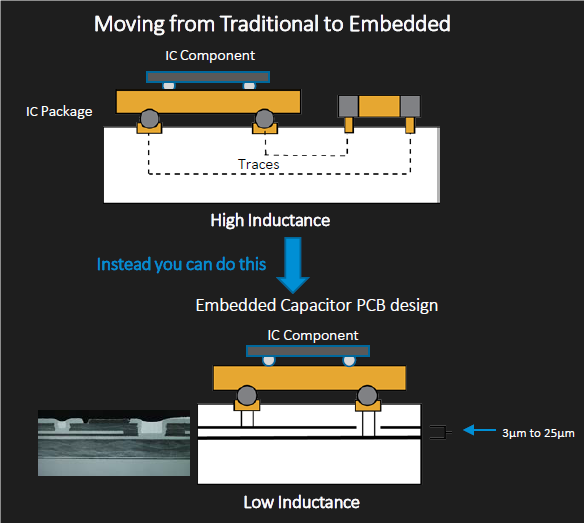

Embedded Capacitance Material consists of a very thin layer of ceramic-filled epoxy sandwiched between two layers of copper foil. It can be patterned as a power and ground plane pair for a lower impedance, shared capacitance power distribution network. The biggest design benefit is that it increases the usable board area by allowing for the removal of many, if not all, capacitors equal to or below 0.1 Microfarad (μF) and their associated solder joints and vias. Additional benefits include:

  • Better power delivery
  • Lower profile
  • Low inductance & impedance
  • Thickness & weight reduction
  • Higher reliability

ASC utilizes Oak Mitsui's Farad Flex Materials, DuPont's Interra® HK04 Thin Laminates, and 3M's C-Ply materials.
Embedded Resistor Materials

Embedded resistors are planar resistive elements made into a thin film. This type of resistor becomes part of the etched and printed circuitry on the standard printed circuit board layer, and in assembly, it eliminates the need for resistor solder joints. Embedded resistors are used over surface discrete resistors when there is a need to miniaturize a PCB footprint, increase density, improve signal integrity or electrical performance, and increase reliability

Additional benefits include:
  • Improves line impedance matching
  • Reduces signal paths & series inductance
  • Reduces cross talk, noise, and EMI
  • Enhances the performance of cost-effective resistor technology in high-speed high-density designs
  • Eliminates discrete resistors, which reduces assembly time
  • Stable through a wide frequency range 20+Ghz

ASC utilizes OhmegaPly® & Ticer TCR® as options for this technology.
