A-SAP

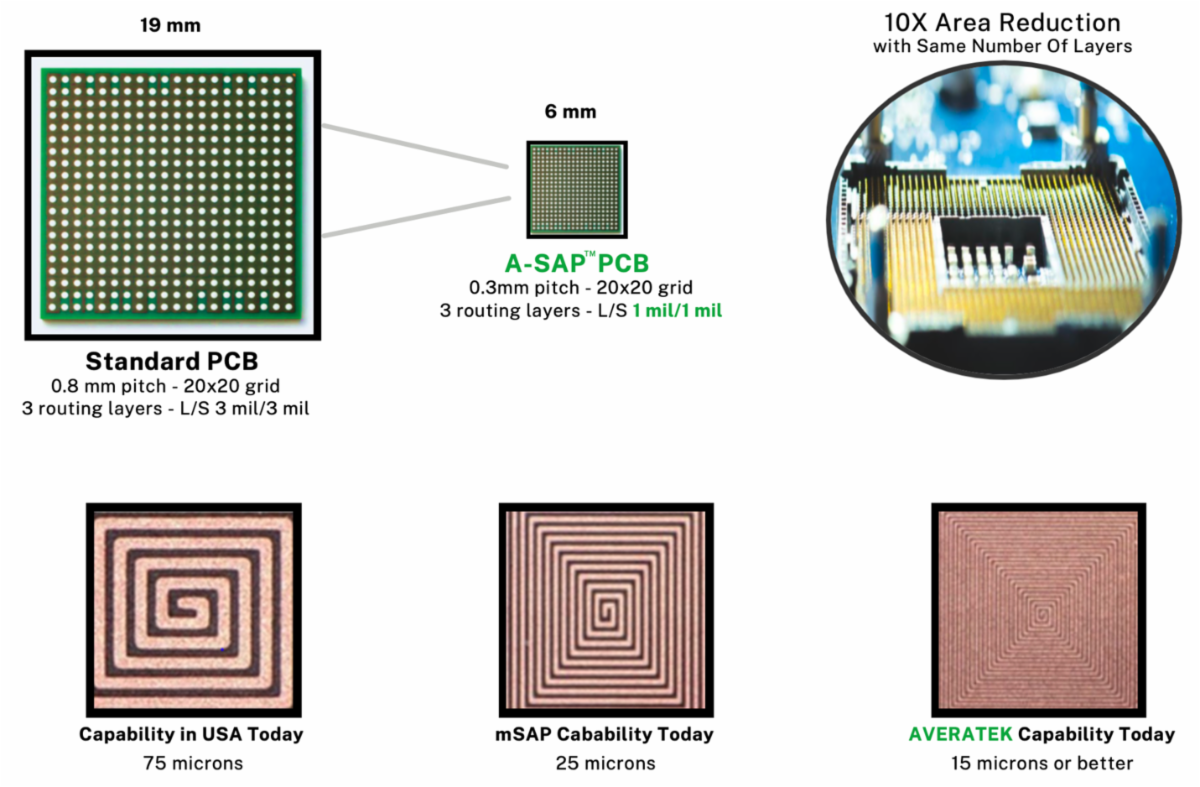

American Standard Circuits has partnered with Averatek on their A-SAPTM technology (Averatek-Semi Additive Process). This additive process (as opposed to the current subtractive process) allows PCB manufacturing with line width and space down to 15 microns (0.6 mils). Some of the benefits of using A-SAPTM are:

·        Significant size & weight reduction
·        Improved reliability & signal integrity
·        Improved RF performance
·        Reduced costs
·        Biocompatibility
Printed Circuit Manufacturing costs are reduced by reducing the PCB footprint size, number of layers and number of lamination cycles. The key chemical component of the process is LMITM (Liquid Metal Ink), which produces a thin, uniform, and dense electroless deposition. Features of LMITM deposit include:
·        Ultra thin: a few nanometers thick
·        Ultra dense: fully-packed atomic film
·        Conforms to any 3D surface at a nanometer scale
·        Non-Aqueous: enables low-cost manufacturing
·        Works for many different pure metals and alloys of those metals: copper, gold, silver, palladium, platinum, etc.
Check out our new YouTube series, Bleeding Edge, where our experts break down the latest and greatest technology in the PCB world!
This episode features John Bushie breaking down A-SAP.
